Changelog for QGIS 3.38 ¶

Release date: 2024-06-21

The QGIS Project is proud to announce the release of QGIS 3.38 Grenoble, a landmark update brimming with advancements designed to empower users on their journey of spatial discovery. This release includes enhanced data filtering capabilities and the tight integration of filter criteria across different project elements, providing extended control to empower users in refining their data exploration processes.

Various improvements have been provided for elevation management, including the new elevation controller as well as the ability to explicitly declare a vertical CRS for your project. Previous releases actively removed vertical CRS information for technical reasons, as outlined in QGIS Enhancement Proposal 267, however, this vital aspect of spatial data management is now being reintroduced to the QGIS project.

Beyond these core improvements, QGIS 3.38 boasts a wealth of enhancements and quality-of-life improvements, including various usability enhancements, CMYK color support, improved search functionalities, and new features for data types such as DXF, Mesh, and SensorThings.

For a whirlwind tour of all the new functionalities introduced, you can view the highlight reel video on YouTube.

QGIS is a community effort, and we would like to extend a big thank you to the developers, documenters, testers, and the many folks out there who volunteer their time and effort (or fund people to do so) to make these releases possible. From the QGIS community, we hope you enjoy this release! If you wish to donate time, money, or otherwise contribute towards making QGIS more awesome, please wander along to QGIS.ORG and lend a hand!

QGIS is supported by donors and sustaining members. A current list of donors who have made financial contributions large or small to the project can be seen on our list of donors. If you would like to become an official project sustaining member, please visit our sustaining member page for more details. Sponsoring QGIS helps us to fund our regular developer meetings, maintain project infrastructure, and fund bug-fixing efforts. A complete list of current sponsors is provided below - our very thank you to all of our sponsors!

QGIS is free software and you are under no obligation to pay anything to use it - in fact, we want to encourage people far and wide to use it regardless of their financial or social status - we believe that empowering people with spatial decision-making tools will result in a better society for all of humanity.

Temporal ¶

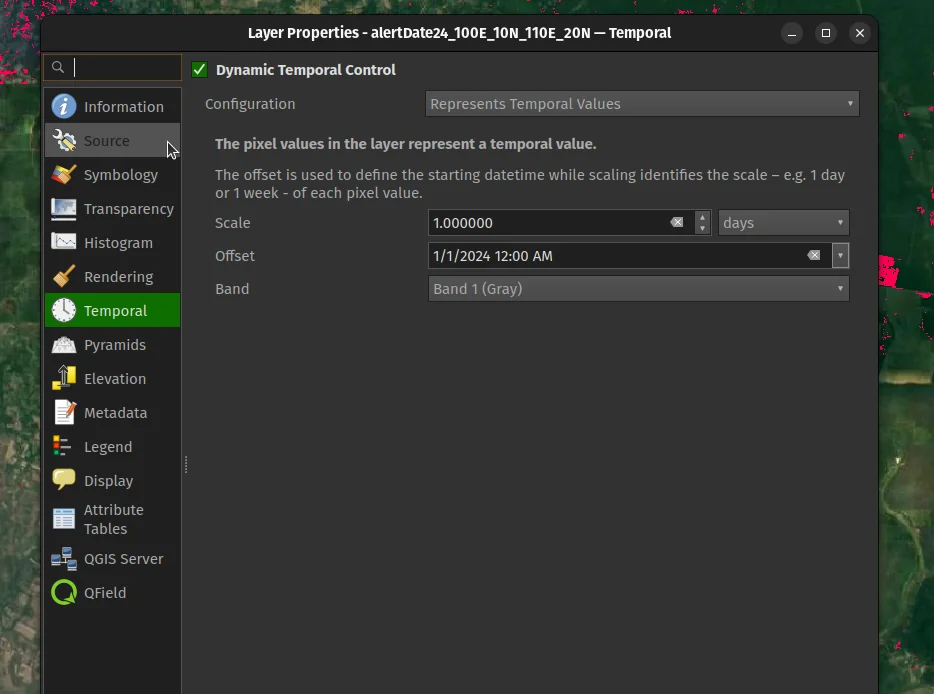

Feature: New temporal mode: pixel value as temporal datetime ¶

A new temporal mode for raster layers is provided that interprets each pixel as a datetime value.

When rendering a raster layer using that temporal mode, pixels will be hidden whenever they fall outside of the temporal range attached to the render context.

Examples of some interesting temporal use cases include:

• representation of land use change such as forest loss
• representation of flooding over time
• representation of movement cost (e.g. GRASS’ r.walk)

This feature was developed by Mathieu Pellerin

Map Tools ¶

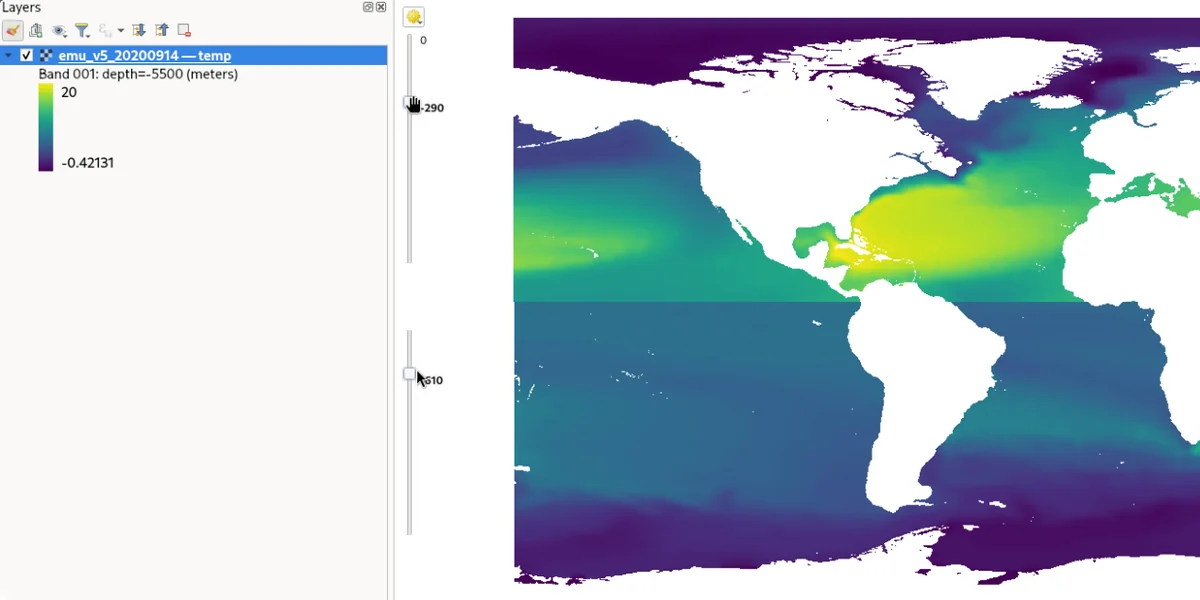

Feature: Add Elevation Controller for filtering vertical data in 2d maps ¶

A new Elevation Controller provides users with the ability to filter vertical data in 2D maps, providing the equivalent experience of the temporal controller for elevation z-range slicing of data in line with QEP 201.

This feature is accessed through a new “Data Filtering” submenu in the View menu, along with new menu items for the Temporal Controller.

The controller shows as a range slider on the left of the map. There’s a configure action for setting the project’s elevation range, which dictates the range available from the widget.

This feature was developed by Nyall Dawson

Feature: Add Z range support to map canvas / map settings items ¶

Elevation filtering is now supported in map canvases

This feature was developed by Mathieu Pellerin

Feature: Add option to set a fixed elevation slice width for elevation controller ¶

A new option is provided on the configuration menu of the elevation controller, which allows for setting a fixed elevation slice width.

It can be used when a specific elevation range width is desired, or when the range should always be zero width.

This feature was developed by Nyall Dawson

User Interface ¶

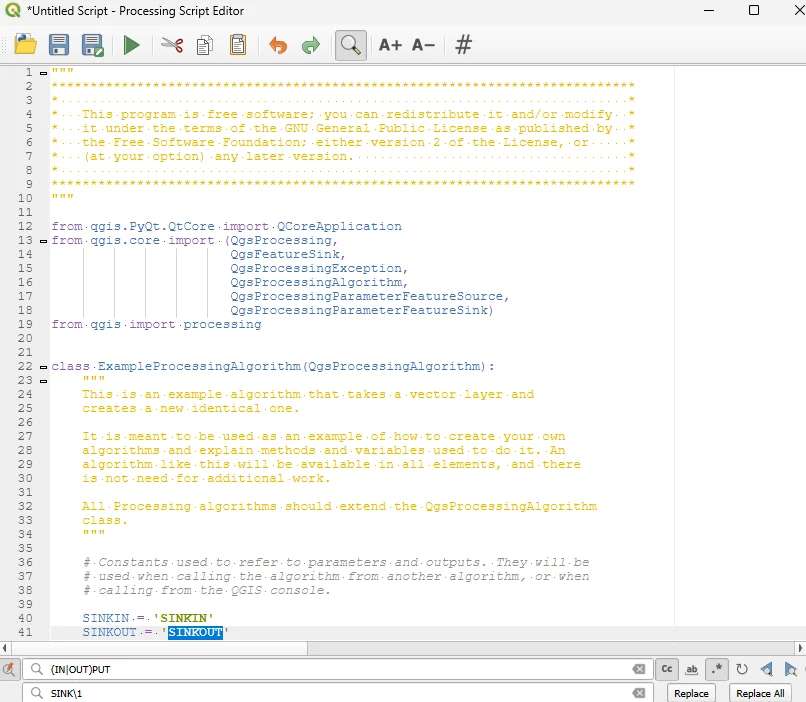

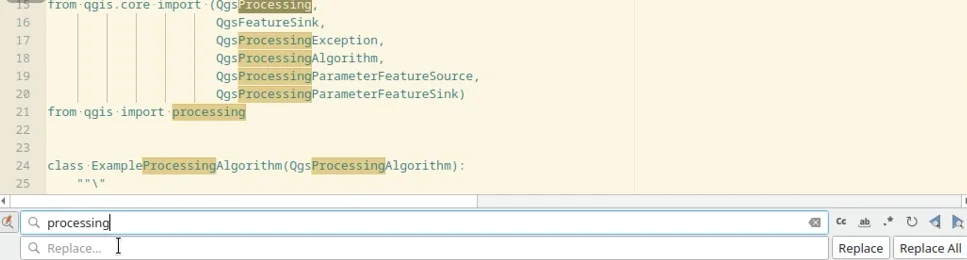

Feature: Add search option for regular expression based searching ¶

A new optional regex mode has been exposed for advanced search options, as implemented in the updated search functionality for the code editor.

This feature was developed by Nyall Dawson

Feature: Data defined override: use middle-click to open the Expression Builder dialog window ¶

Description ¶

The middle-click on the Data defined override icon makes the Expression Builder dialog window open, as a convenient shortcut for right-clicking and then left-clicking on the Edit menu item.

This feature was developed by Andrea Giudiceandrea

Symbology ¶

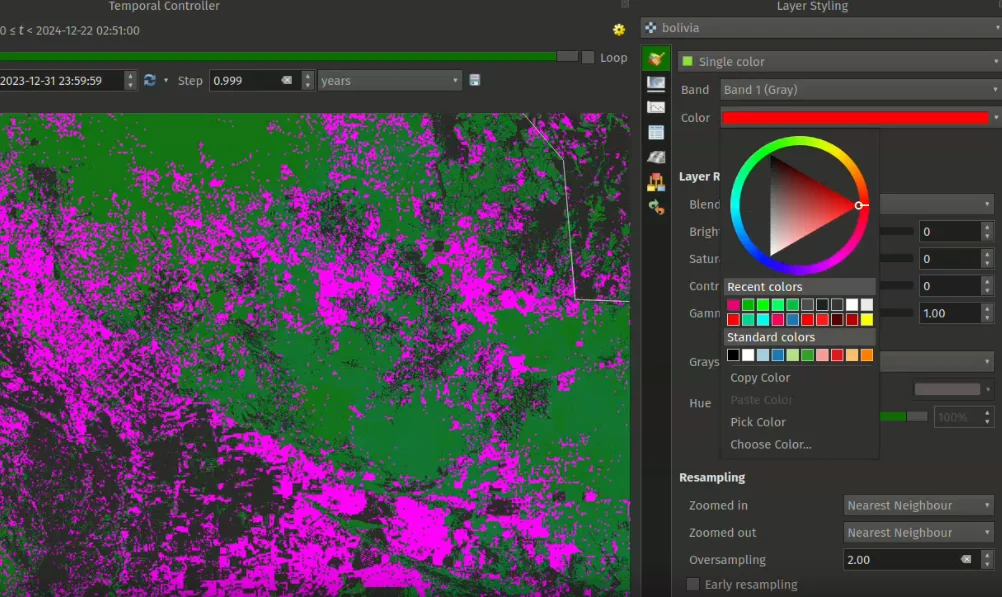

Feature: New single color renderer for rasters ¶

A new single-color symbology has been added for raster layers. This allows for a super simple and friendly way to render a raster using a single color.

This feature was developed by Mathieu Pellerin

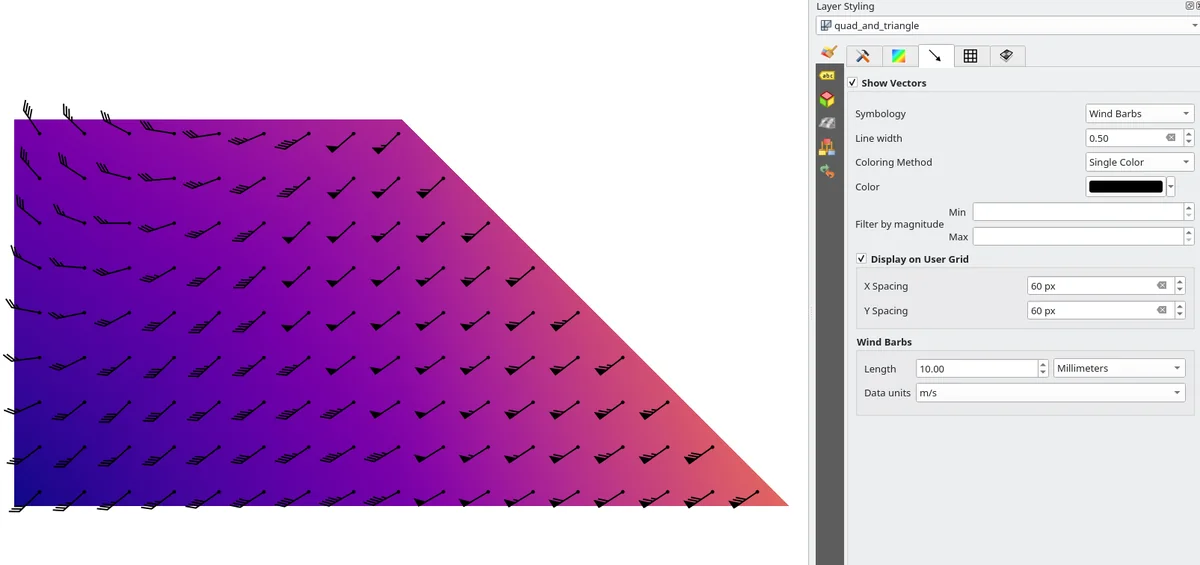

Feature: Add support for Wind Barb rendering for mesh vector datasets ¶

Wind Barbs are a common way to display wind strength and direction on maps, and the new Wind Barb symbology type makes it easy for users to use this powerful visualization style for their mesh vector datasets.

Wind barbs encode the wind speed in knots (nautical miles per hour) so users must explicitly select the relevant data units for their data to display correctly, or use a custom multiplier to convert the value to knots.

This feature was developed by Stefanos Natsis

Labelling ¶

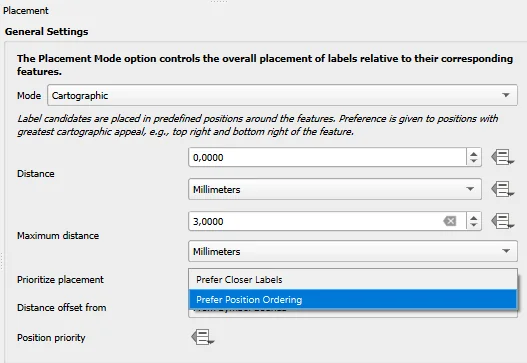

Feature: Add maximum distance setting for point labels ¶

A new optional setting has been added for the “Around point” and “Cartographic” placement modes to specify the maximum distance of the labels from the feature. It’s used together with the existing distance setting to define a range of distances at which labels may be placed from their corresponding point features.

This adds more flexibility to the placement of these layers, ultimately allowing for more labels to be placed on busy maps.

When the layer is set to the “around point” mode, then label candidates that are closer to the point will always be preferred over those that are further away.

When the layer is set to the “cartographic” mode, then the default behavior is also to prioritize closer labels. A new combo box allows users to control the priority, with an option for preferring position ordering. If this option is set, candidates at the corresponding positions (e.g. top left) are preferred, regardless of how far they are from the point, with the labeling falling back to alternate positions only when no labels can be placed up to the maximum label distance.

This feature was funded by Rubicon Concierge Real Estate Services

This feature was developed by Nyall Dawson

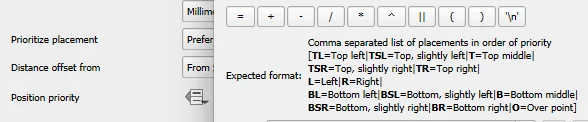

Feature: Add ‘over point’ placement option for cartographic label mode ¶

A new option for label placement has been added for “O” = “over point” when the label placement mode is set to the “cartographic” mode.

When a feature’s data-defined placement priorities include this new ‘O’ option, a label can be placed directly over the corresponding point.

This feature was funded by Rubicon Concierge Real Estate Services

This feature was developed by Nyall Dawson

Rendering ¶

Feature: Add data defined control over heatmap radius and maximum value ¶

This allows users to define the radius and maximum as a value that makes sense for the current situation, e.g. the current map scale, current print atlas feature, or current temporal range.

This additionally includes the base changes required for data-defined properties at the feature renderer level, which may be useful for extending other vector renderer classes (e.g. point cluster/ displacement).

This feature was funded by Rubicon Concierge Real Estate Services

This feature was developed by Nyall Dawson

Print Layouts ¶

Feature: Tab character support for QgsTextFormat and QgsTextRenderer ¶

A regression resulted in QGIS stripping tab characters and limiting the ability to use tab characters in certain contexts, such as performing character alignment in legends.

This feature was developed by Nyall Dawson

Feature: Copy composer grids ¶

A button to copy (duplicate) the selected grid has been added to the print composer.

This simplifies the process of creating new grids which only have a few differences from an existing grid or using an existing grid as a template.

This feature was funded by NaturalGIS

This feature was developed by Alexander Bruy

Feature: Add z range filter option for layout maps ¶

A new setting for layout map items allows users to set a specific elevation/z range for the filtering of 2D layout maps, similar to the existing setting for temporal filters.

When set, map layers supporting 2D z-range filtering will be filtered to show only content within this range.

Additionally, the range for z-filtering can be data-defined, allowing different z-ranges for atlas or report features based on data-driven feature properties.

This feature was developed by Nyall Dawson

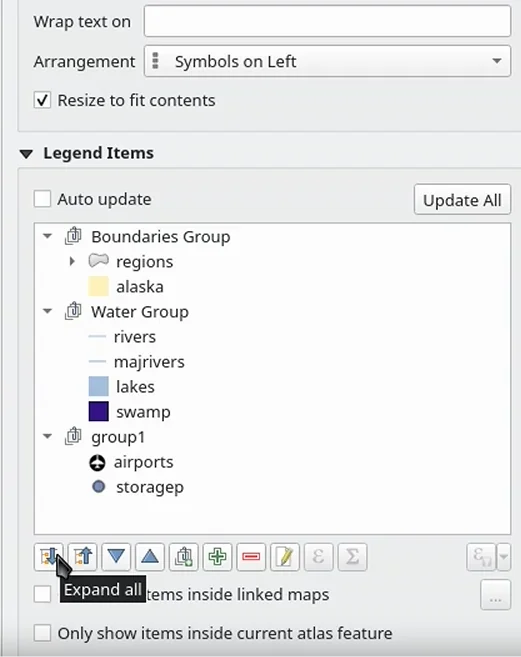

Feature: Add buttons to expand or collapse layout legend tree ¶

New buttons have been added to allow users to easily expand or collapse the legend trees within print layouts.

This feature was developed by Harrissou Sant-anna

Expressions ¶

Feature: Add @map_z_range variables reflecting the map’s z range values ¶

New variables for retrieving the current @map_z_range_lower and @map_z_range_upper values have been added to QGIS Expressions that reflect the map canvas’ z range value.

This feature was developed by Mathieu Pellerin

Data Management ¶

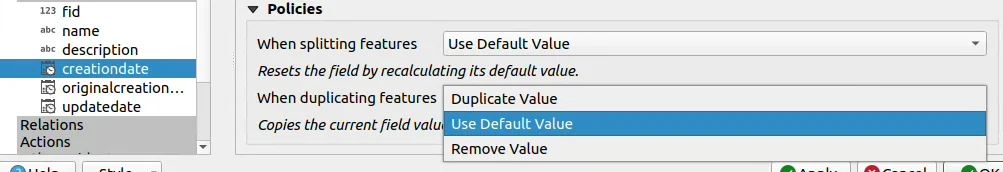

Feature: Duplicate policy on fields when duplicating features ¶

When duplicating a feature (and its children) a new duplication policy will be available on QgsField objects.

This behavior can be configured using the policies interface in the layers feature form definition, however, the actively defined policy will be implemented on any features duplicated using generic map tools whenever a feature is copied (e.g. “move and copy” digitizing, or copy and pasting from the canvas or attribute table).

There are three policy options currently available:

• Duplicate Value (default mode): Creates a copy of the attribute value from the source feature.
• Default Value: Not to be confused with the default mode, the default value setting resets new features to the feature form default as defined in the form designer (typically a QGIS Expression).
• Remove Value: Unsets and removes the field value (NULL).

This feature was developed by signedav

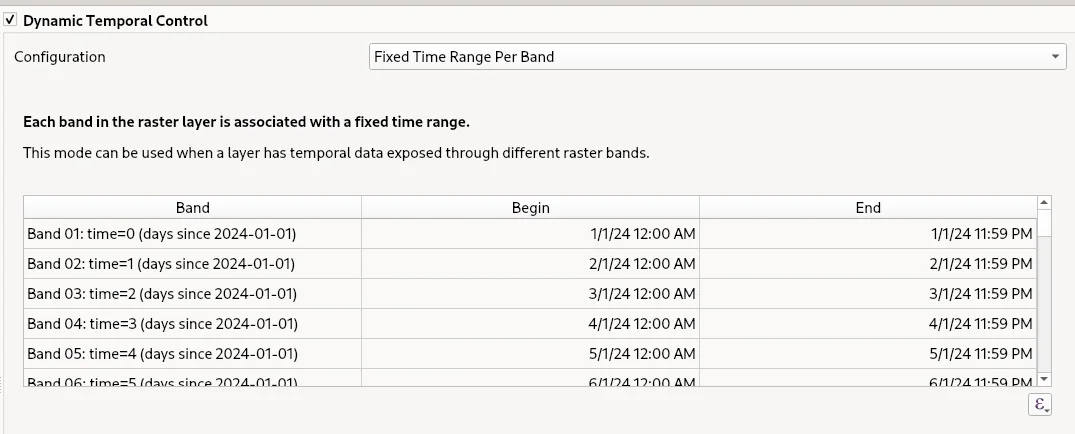

Feature: Add “Fixed Time Range Per Band” mode for raster temporal control ¶

This mode can be used when each band in the raster layer is associated with a fixed time range, eg. NetCDF files.

The user can either manually populate a table with begin/end dates for each band in the raster or build the table using QGIS expressions which return datetime values

This feature was developed by Nyall Dawson

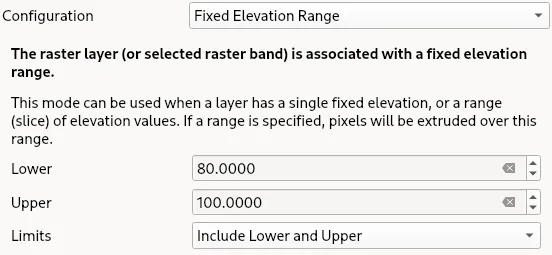

Feature: Introduce fixed elevation range for raster layers ¶

A new option has been introduced for specifying how elevation is associated with raster layers. It permits a fixed elevation range to be set for the layer and can be used when the layer has a single fixed elevation or a range (slice) of elevation values.

Users can set the lower and upper elevation range for the layer, and whether the lower or upper limits are inclusive or exclusive.

When enabled, the layer will only be visible in 2D maps with elevation filtering active if the layer’s range is included in the z range of the map.

This feature was developed by Nyall Dawson

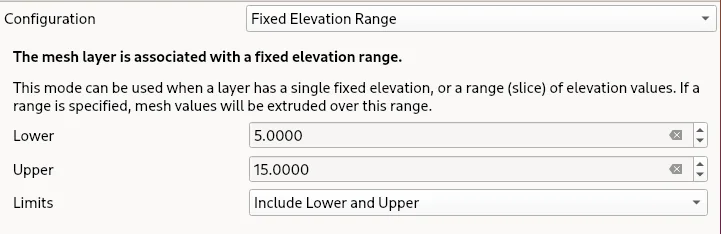

Feature: Introduce fixed elevation range for mesh layers ¶

A new fixed elevation range mode is available for mesh layers, equivalent to the fixed elevation range mode for raster layers which provides a new option for specifying how mesh layers have associated elevation. It permits a fixed elevation range to be set for the layer. It can be used when the layer has a single fixed elevation or a range (slice) of elevation values.

Users can set the lower and upper elevation range for the layer, and whether the lower or upper limits are inclusive or exclusive.

When enabled, the layer will only be visible in 2D maps with elevation filtering active if the layer’s range is included in the z range of the map.

This feature was developed by Nyall Dawson

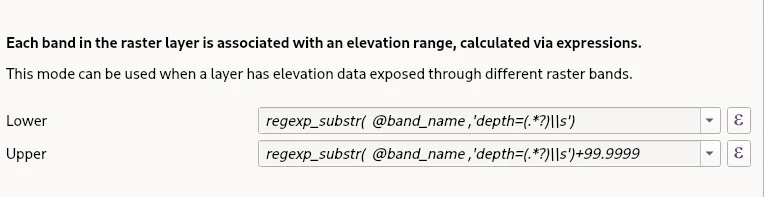

Feature: Add a “fixed range per band” elevation mode for rasters ¶

In this new mode, each band in the raster can have a fixed elevation range associated with it.

This is designed for data sources that expose elevation-related data in bands, e.g. a NetCDF raster with temperate data at different ocean depths.

When rendering, the UPPERMOST matching band will be selected and used for the layer’s data. The renderer configuration will be retained unchanged regardless of the matching band, so users must configure the rendering options for the layer using a representative range that covers the data from all bands.

The layer configuration is exposed as a user-editable table of raster bands with lower and upper values. Users can either populate the lower and upper values manually or use a QGIS Expression to fill all band values automatically.

Expression-based value definitions will allow users to design expressions capable of extracting useful information from file metadata that might otherwise be difficult to manipulate, such as the band names themselves, e.g. “Band 001: depth=-5500 (meters)”.

This feature was developed by Nyall Dawson

Feature: Add “dynamic elevation range per band” mode for rasters ¶

A new dynamic mode for configuration raster elevation is provided where the elevation range for raster bands is calculated using a pair of QGIS Expressions for the lower and the upper limits of the elevation range for the layer.

In this mode, the user can specify a QGIS expression for the lower and upper value corresponding to raster bands, using variables like @band, @band_name, and @band_description alongside standard QGIS Expression values, globals, and project variables.

For example:

@band * 100

This can be used when each band represents a 100 m vertical slice of data.

The expression will be evaluated when required to determine the actual elevation range corresponding to each band.

This differs from the"Fixed Elevation Range Per Band" mode which requires users to manually enter an elevation for each band separately, and these values are then treated as constants. That mode works best for rasters with non-regular steps in the band elevation values, while the dynamic mode is more suitable for data that includes regular elevation steps across each band.

This feature was developed by Nyall Dawson

Feature: Add fixed elevation range per dataset group mode for mesh layers ¶

Additional functionality to set a fixed elevation range per dataset group on mesh layers mimics the new “fixed range per band” mode raster layers but allows a per-dataset group elevation range to be set for mesh layers.

This feature was developed by Nyall Dawson

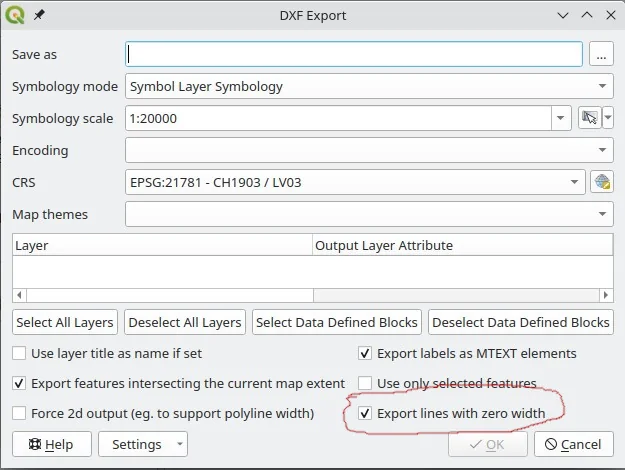

Feature: Add option to export all lines with minimal width in dxf exports ¶

An optional setting has been added to dxf exports that will allow users to write all lines with minimal width 0 (hairline).

Lines within DXF files having zero width typically remain minimal in the CAD regardless of zoom level, so this functionality can be quite useful for compatibility with exported DXFs that are edited with other software, especially in use cases where high data density is a concern.

This feature was funded by Stadtwerke München

This feature was developed by mhugent

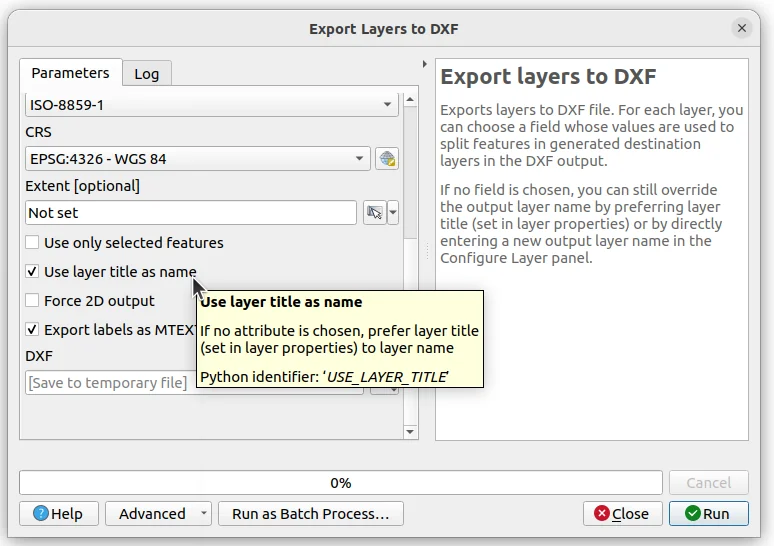

Feature: Allow users to override the layer names exported to DXF ¶

It is now possible to override the output name of individual layers exported, with new configuration options added to the DXF export dialogs for project exports, layer exports, and the Export layers to DXF Processing algorithm.

This feature was funded by the QGIS user group Switzerland

This feature was developed by Germán Carrillo

Feature: Create DXF blocks for point symbols with data defined properties ¶

Additional enhancements have been added to the capability of utilizing references within a DXF, especially for complex data-defined properties, providing much smaller DXF outputs for complex layers that include repeated point symbols.

A process of attribute hashing is utilized to optimize the performance and account for all possible attribute combinations. In instances where many combinations are unique, each block would only be used nearly once - resulting in a large output file. To manage such cases, the “Export Project to DXF” dialog now includes new configuration options to limit the number of blocks per symbol layer (-1 means no limitation). If the limit is set to an integer value, e.g. 5, then only the 5 blocks with the highest number of references are created and the other symbols are written inline.

This feature was funded by Stadtwerke München

This feature was developed by mhugent

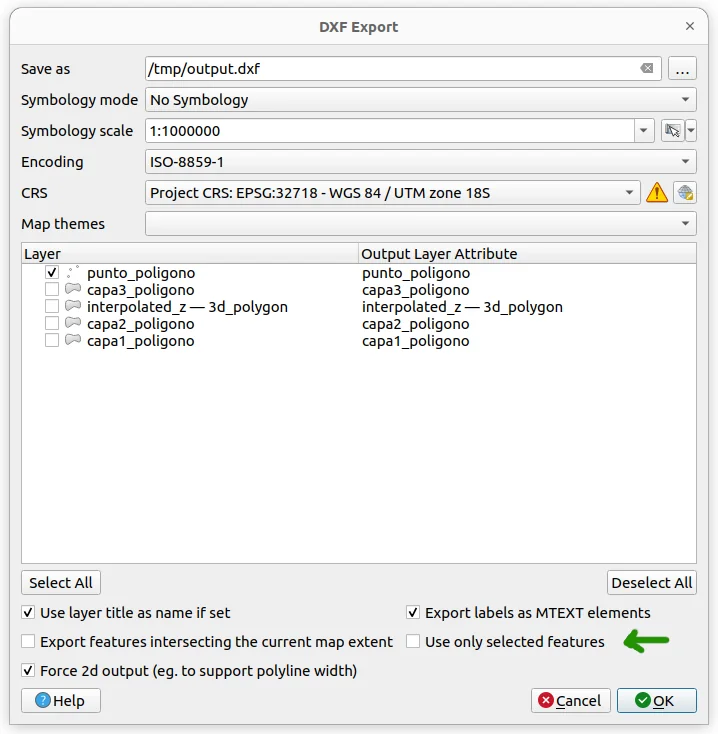

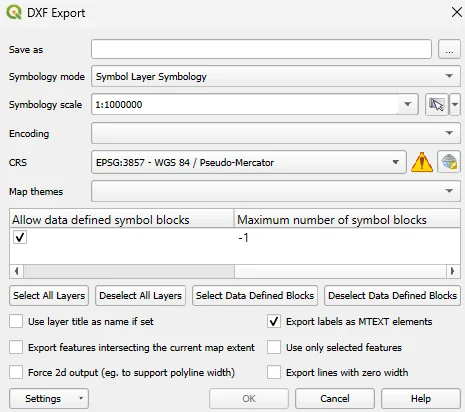

Feature: Add option ‘Use only selected features’ to DXF export ¶

A new option has been added to DXF export dialogs that will allow users to export only the features active in the current selection.

By default, this setting will be set to false.

This feature was funded by the QGIS user group Switzerland

This feature was developed by Germán Carrillo

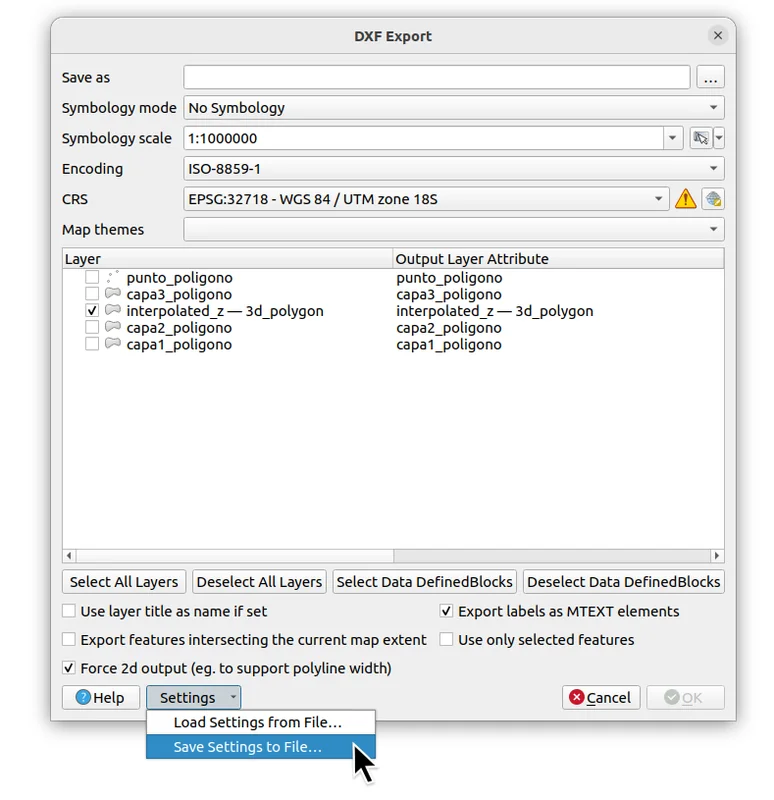

Feature: Import/ Export ‘DXF Export’ dialog settings ¶

Users to save and restore GUI settings for the DXF Export dialog, making it possible to export any number of configurations for improved reusability or to share them with colleagues for enhanced collaboration.

Settings are exported to an XML file which can be loaded into the DXF Export configuration interface, overwriting the existing configuration values.

This feature was funded by the QGIS user group Switzerland

This feature was developed by Germán Carrillo

Forms and Widgets ¶

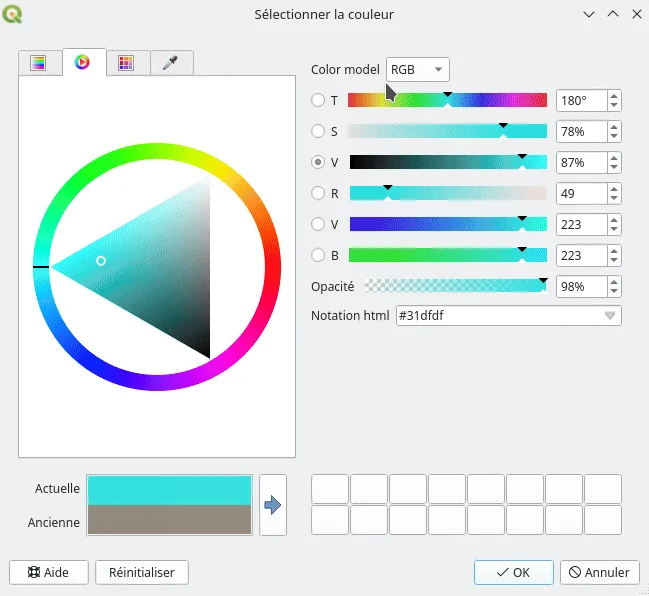

Feature: Add CMYK support for Color Widget ¶

CMYK color support has been added for the color widget in line with the CMYK QEP.

This feature was funded by Métropôle de Bordeaux

This feature was developed by Julien Cabieces

Feature: Add parent feature scope when adding/editing a child feature through the relation editor widget ¶

A current_parent_* scope is now provided when adding and editing child features through the attribute form’s relation editor widget.

This is very useful in contexts where a captured feature or value may rely on the parent entity being captured at the same time, but as the parent feature has not yet been captured, the attributes and geometry cannot be retrieved.

This feature was funded by Hansestadt Herford

This feature was developed by Mathieu Pellerin

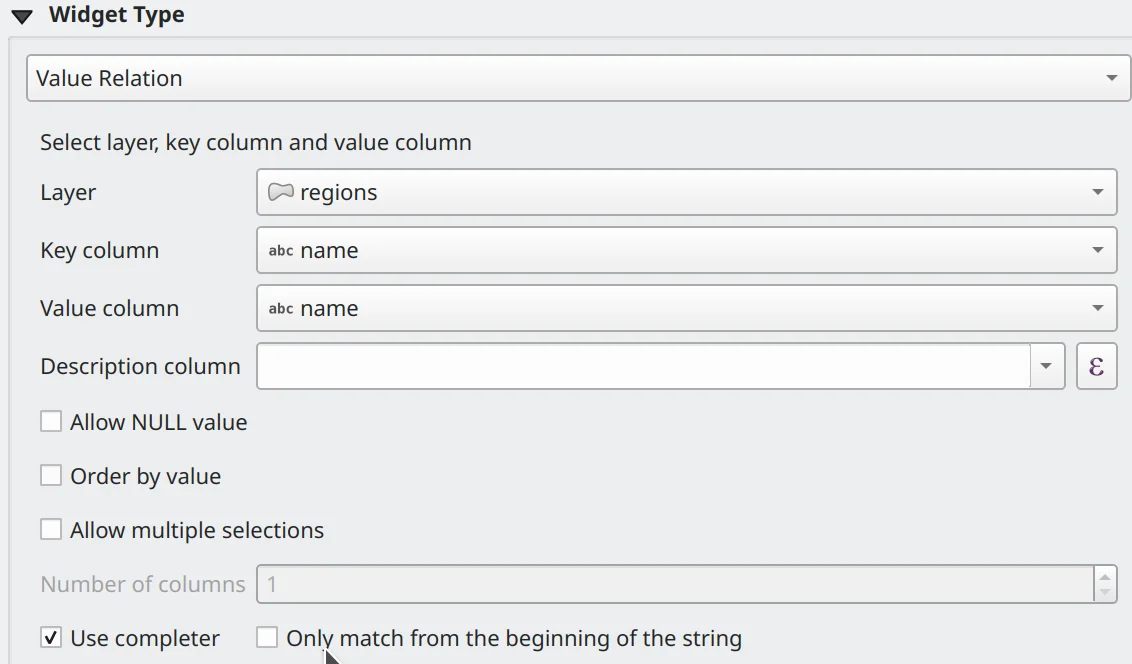

Feature: Add “match contains” to autocompleter in value relation widget ¶

Previously, the autocomplete function would match from the beginning of the string only, but a new checkbox option allows users to match contained values within the entire string.

The old behavior is still the default for autocomplete, making this setting an opt-in operation.

This feature was developed by Alessandro Pasotti

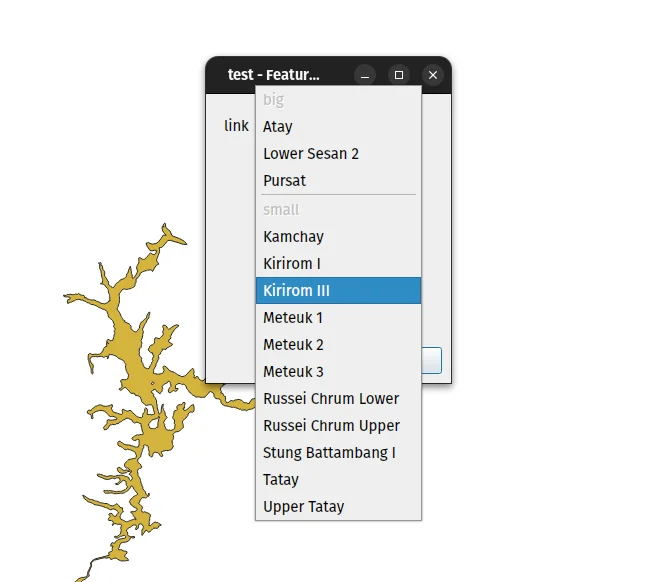

Feature: Implement value relation’s grouping functionality ¶

Grouping functionality has been added for the value relation editor widget, allowing users to regroup items into buckets of values. Users are also given the option to show the group value as a group header name in the combo box and table widgets.

This feature was developed by Mathieu Pellerin

Layer Legend ¶

Feature: Show a color ramp legend for vector heatmap layers ¶

Instead of showing no legend for these layers, QGIS will now show the color ramp as a gradient bar.

Users can control the text for the min/ max labels, the direction of the bar, and the font settings.

This update also introduced changes to the internal API for vector renderers so that renderers have the flexibility to create other types of legend nodes other than QgsSymbolLegendNodes and provides the opportunity for future extensions to existing renderers.

This feature was funded by Rubicon Concierge Real Estate Services

This feature was developed by Nyall Dawson

Feature: Add layer tree filter for “Show Broken Layers Only” ¶

When checked, only layers with broken sources will be shown in the tree.

This allows users to easily find broken layers in large complex projects, where they may otherwise escape notice!

This feature was developed by Nyall Dawson

Processing ¶

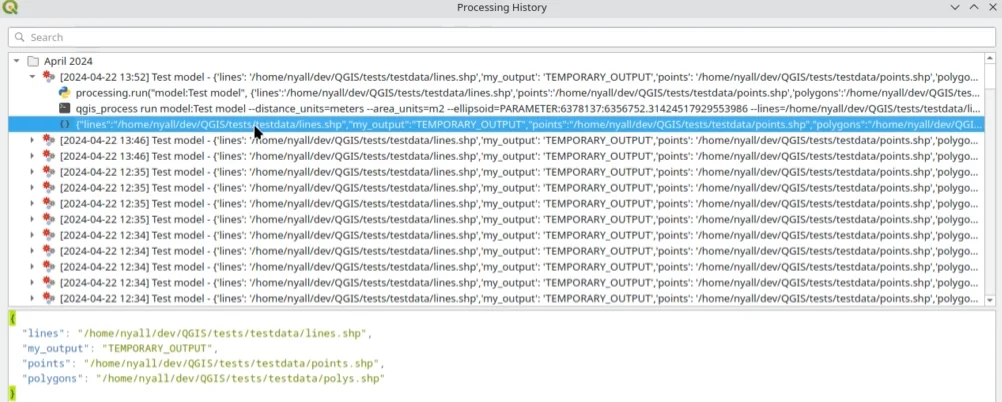

Feature: Show more detail in history dialog ¶

A new tree display is provided for review of processing history entries, where the root item for each entry shows the full algorithm log when clicked and the respective python or qgis_process commands are displayed as child items.

This provides more useful information for users browsing the history, while still making all the previous information available.

This feature was developed by Nyall Dawson

Feature: Add “Run Selected Steps” option to model designer ¶

A new action will allow users to run only the selected steps in a model, effectively allowing users to run a subset of a model.

The initial state will be taken from any previous executions of the model through the designer, so results from previous steps in the model are available for the selected steps.

This makes it possible for a user to fix parts of a large model, without having to constantly run the entire model to test. Especially
useful when earlier steps in the model are time-consuming!

This feature was funded by City of Canning

This feature was developed by Nyall Dawson

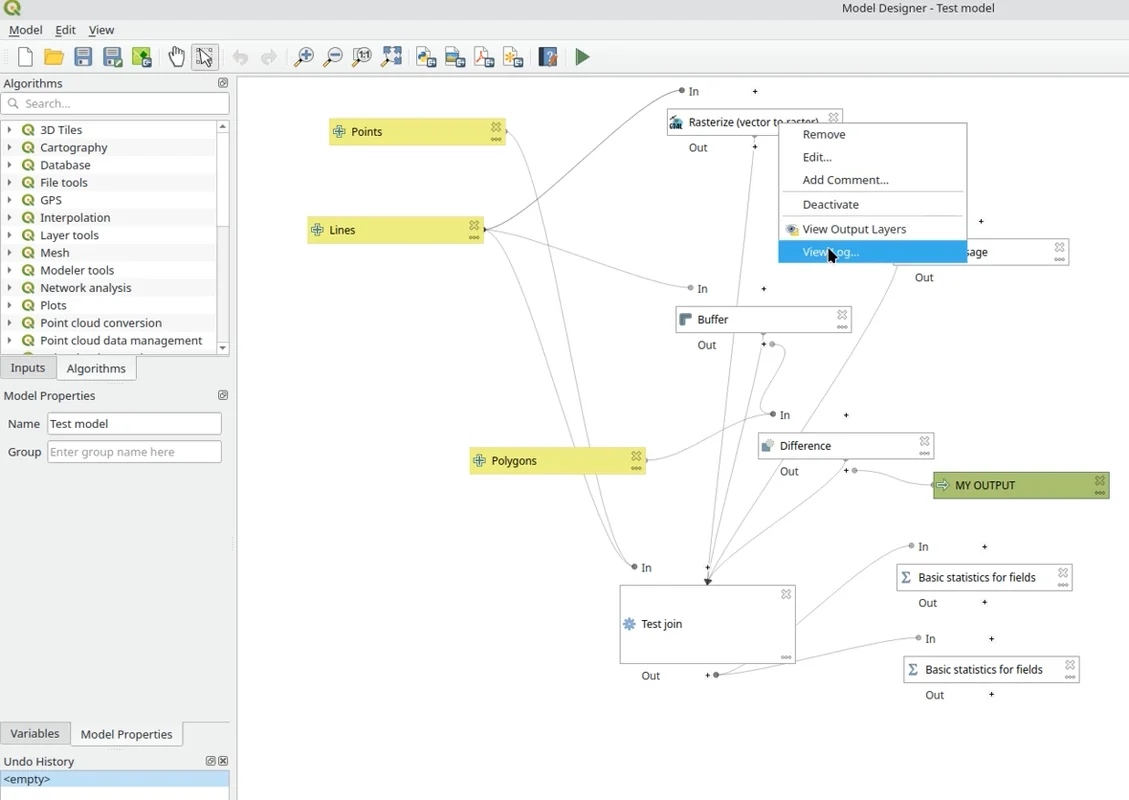

Feature: Add “View Output Layers” option for model child algorithms ¶

When editing a model through the designer, a new right-click context option has been added for “View Output Layers” on any child step in the model
that has been run. Selecting this option will add the output layers from that step as new layers in the current QGIS project.

This action is available for all child algorithms in the model, even if the model is not configured to use the outputs from those children as model outputs. This action is also always available after running the model, even if the model itself fails (e.g. because of a misconfigured step later in the model).

This is designed as a helpful debugging action. If a user’s model fails (or gives unexpected results), they will now be able to trace through the model and view the outputs for suspected problematic steps, avoiding the need to add temporary outputs to a model and re-run for testing purposes.

An additional “View Log” action has also been provided so that users can see the log for each child after the algorithm dialog has been closed down.

This feature was funded by City of Canning

This feature was developed by Nyall Dawson

Feature: Endpoint distance threshold for network analysis ¶

An optional end-point distance threshold parameter has been added to the network analysis tools.

The previous (and current default) behavior is that endpoints will ALWAYS be snapped to the nearest point in the network layer, regardless of how far away from the network they are, resulting in errors where points are snapped to an edge an arbitrary distance away.

The behavior of the threshold depends on the algorithm:

• For the “Service area (from layer)” tool an optional new output was added for “non-routable features”. This output will contain any features that were deemed too far from the network. All other features that are within tolerance distance to the network will be stored in the standard output from the tool.
• For the “Service area (from point)” tool an error will be raised if the point is too far from the network
• For the “Shortest path (point to point)” tool an error will be raised if either the source or destination points are too far from the network.
• For the “Shortest path (layer to point)” and “Shortest path (point to layer)” tools:
• An error will be raised if the point is too far from the network.
• A new optional output was added for “non-routable features”. This output will contain any features that were deemed too far from the network. All other features that are within tolerance distance to the network will be stored in the standard output from the tool.

This feature was funded by City of Canning

This feature was developed by Nyall Dawson

Feature: Add support for pure date and time decorators ¶

QGIS Processing previously provided support for generating and processing datetime values as an explicit datetime type, but this release will support the definition of datetime, time, and date objects as discrete data types.

This feature was funded by Ifremer

This feature was developed by Jean Felder

Application and Project Options ¶

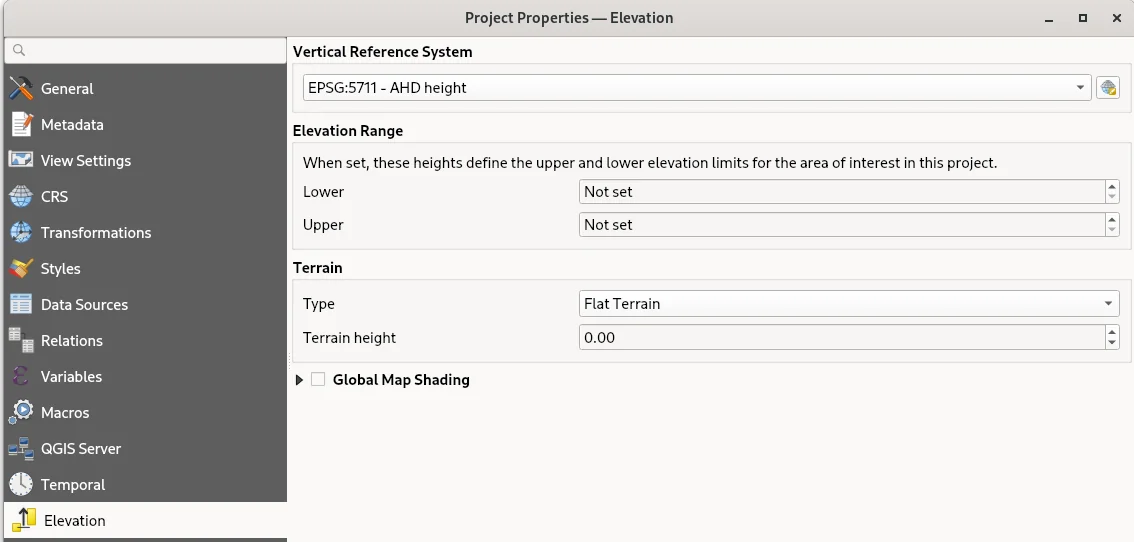

Feature: Add vertical crs option for projects ¶

In line with QEP #267, a new vertical CRS option has been added to projects.

If the project CRS is a compound CRS, then the vertical CRS for the project will be the vertical component of the main project CRS. Otherwise, it will be the value explicitly set by the user.

Users can specify the vertical CRS through the Elevation Tab of the Project Properties.

If a compound CRS is defined as the active CRS for a project, the Vertical Reference System will infer the Vertical CRS definition. If the current project CRS is a 2D/ Horizontal CRS, then users will be able to define their own explicitly selected Vertical CRS.

This functionality does not impact rendering or feature handling and is currently a metadata property only.

The API for project objects has also been extended to support this functionality, and now includes methods for:

• crs(): The existing project method for the defined project CRS
• verticalCrs(): A new project method for fetching the Vertical Reference System
• crs3D(): An explicit getter for retrieving a compound reference system (combination of crs and verticalCrs)

This feature was developed by Nyall Dawson

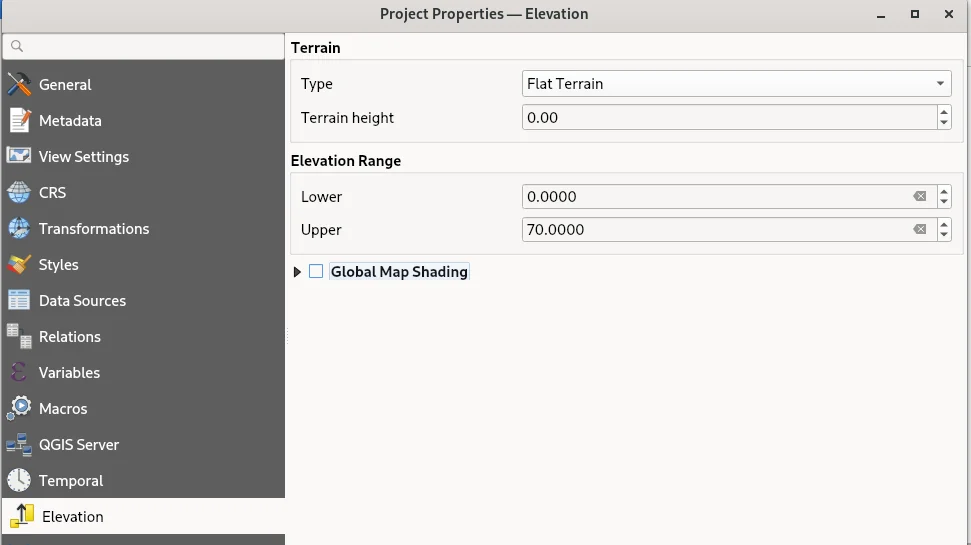

Feature: Add elevation range to project properties ¶

This setting allows users to specify the upper and lower elevation limits associated with the project in line with QEP 201, providing an equivalent user experience for filtering elevation range as users may already be familiar with for configuring the temporal range settings within projects.

This can be specified through the Elevation tab (renamed from “Terrain”) in the Project Properties and extends the API of the QgsProjectElevationProperties class.

This feature was developed by Nyall Dawson

Sensors ¶

Feature: Support feature expansion ¶

This change allows SensorThings entities to be expanded to contain their related child feature attributes, exposing the relational SensorThings model as a traditional “flat” GIS-friendly table structure.

For example, when selecting Location entities, users can now opt to expand to “Things > Datastreams > Observations”. This would result in multiple “stacked” point location features, one corresponding to each observation, with the attributes for each point feature containing the location, thing, datastream, and observation attributes.

This functionality is best used when combined with some extent, feature limit, or custom filter option, as this can otherwise result in very heavy requests to the backend service!

An option to limit the number of child features returned when expanding is provided. By default, a conservative amount of features will be returned to reduce the load on services and require users to explicitly “opt-in” to fetch large amounts of features.

This feature was funded by BRGM and Water4All Partnership

This feature was developed by Nyall Dawson

Feature: Add support for SensorThings Multidatastreams ¶

This adds support for the Multidatastream entity type, as implemented in the SensorThings version 1.1 “MultiDatastream extension”.

While the specification mandates that MultiDatastreams have an optional polygon geometry, many servers expose different geometry types for this entity or return errors when attempting to read the geometries from MultiDatastreams. Accordingly, QGIS now exposes an option to load MultiDatastreams as geometryless layers alongside the default option to load them as polygon layers, allowing users to handle a wider range of connections.

This feature was funded by BRGM and Water4All Partnership

This feature was developed by Nyall Dawson

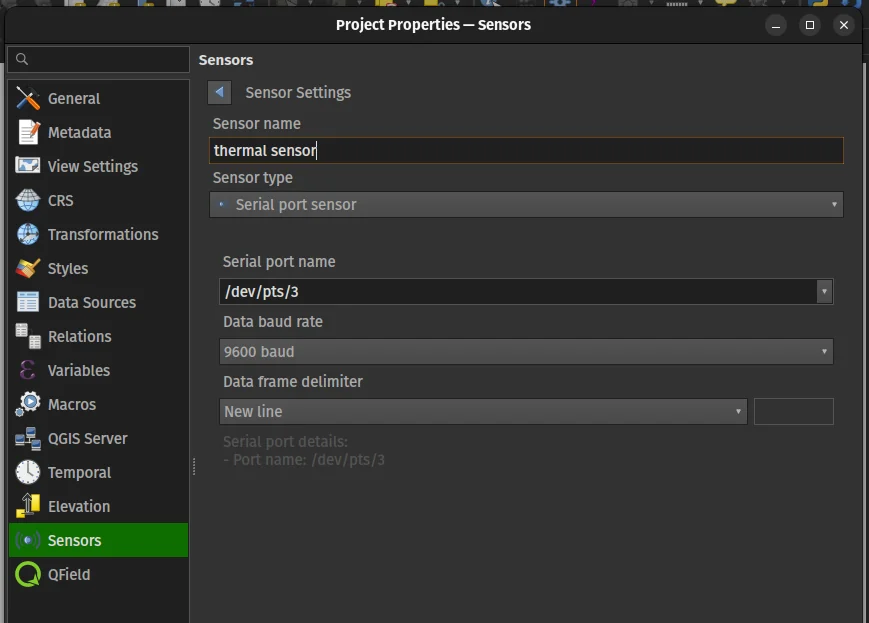

Feature: Serial port sensor’s data frame delimiter ¶

A new data frame delimiter option has been added to the serial port sensor configuration.

In cases where multiple data frames are found in the last chunk of data pushed by the serial port, this implementation will return all data frames. Users can then use an expression to further split the returned last data value from the sensor into individual frames (e.g. using string_to_array).

This feature was developed by Mathieu Pellerin

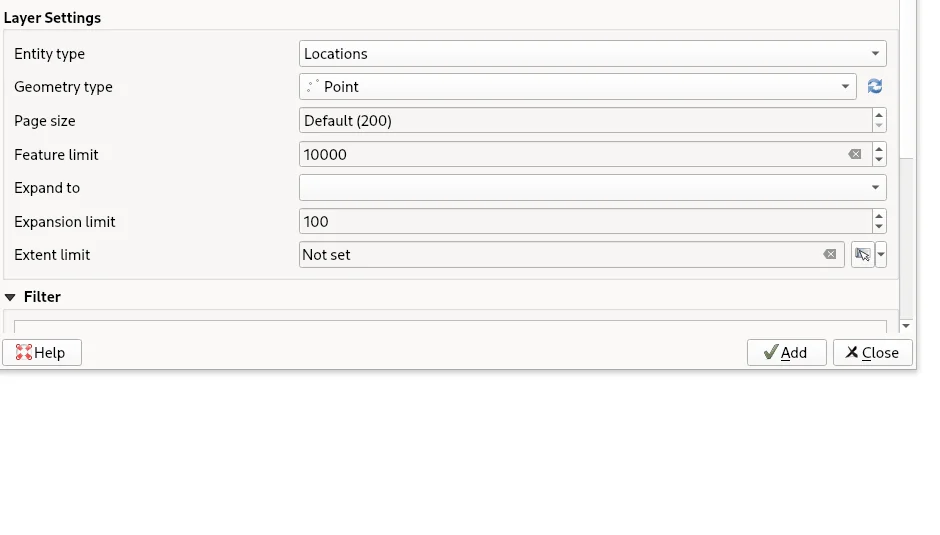

Feature: Add an optional feature limit setting ¶

Allows setting a maximum number of features to request from the service, avoiding overloading services with too many requests

This feature was developed by Nyall Dawson

Feature: Implement subset string support for SensorThings ¶

This allows setting custom filters on the layer, using the SensorThings filter syntax.

A custom layer filter GUI is provided for SensorThings layer filters, making it easier for users to craft valid filters using the SensorThings filter language.

This feature was funded by BRGM and Water4All Partnership

This feature was developed by Nyall Dawson

Profile Plots ¶

Feature: Add tolerance for lines and polygons ¶

The elevation profile tool has been improved by adding tolerance support for lines and polygons (2D/ 3D), as illustrated using drillhole representations (from the OpenLog plugin).

Without support for tolerances, any line or polygon feature is displayed in its entirety within the elevation profile plot as soon as it intersects the profile curve. By adding support for user-defined tolerances, only intersecting slices of the feature that fall within the defined region are rendered on the plot.

This feature was funded by CEA/DAM François Renard

This feature was developed by Benoit D.-M. - oslandia

Data Providers ¶

Feature: Add extent based filtering for SensorThings layers ¶

Allows users to set an extent limit for the layer so that features are only ever loaded within this extent.

The extent can be set using the data source manager before initially adding the layer, or modified within the source tab if the layer properties.

This feature was funded by BRGM and Water4All Partnership

This feature was developed by Nyall Dawson

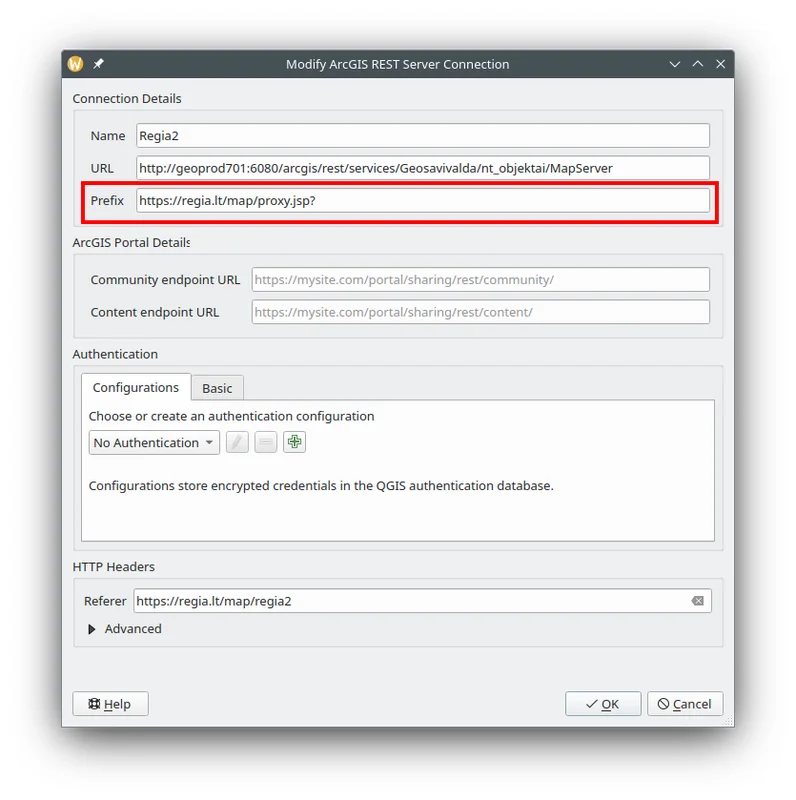

Feature: Web proxy prefix support for ArcGIS URLs ¶

A new prefix field is provided in ArcGIS settings dialogs that allows users to define the URL prefix of a web proxy used to access ArcGIS Services which will be prepended to all requests.

This feature was developed by Vytax

Feature: Add support for fast extent estimation on SAP HANA connections ¶

Stored extent metadata can be utilized with the new “use estimated metadata” connection, which allows for precomputed extent estimation and much faster connectivity on large tables.

Although costly aggregation functions are avoided whenever the extent is recomputed, the extent information for HANA tables is only available after a delta merge. By default, this option will leverage a fallback to the standard behavior of using aggregation functions to compute extents in cases where the data is unavailable(or has not yet been computed).

This feature was developed by Johannes Quast

QGIS Server ¶

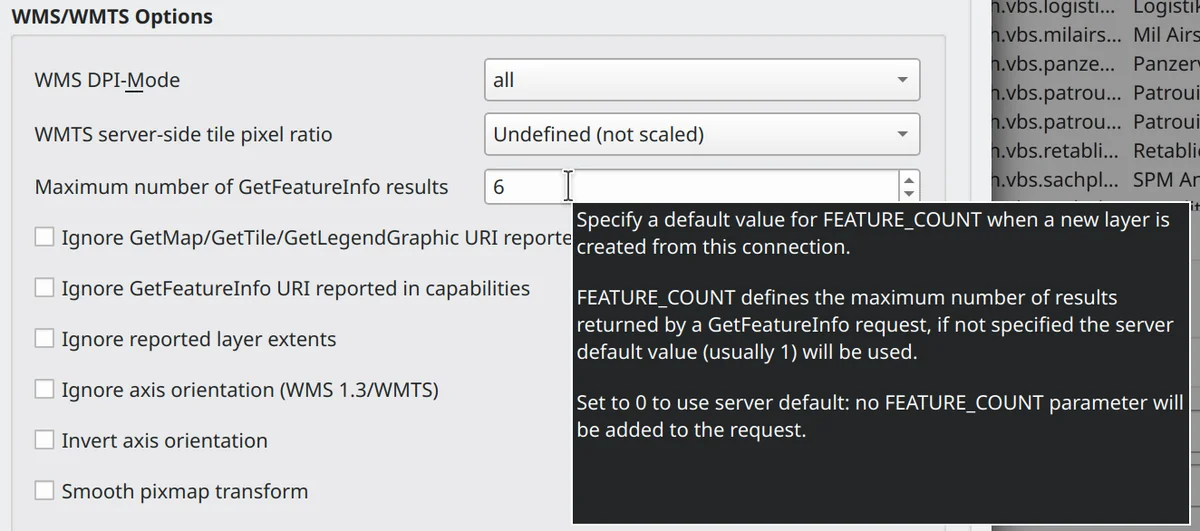

Feature: Default limit for GetFeatureInfo results ¶

A new setting allows users to set a default FEATURE_COUNT value individually for each WMS connection, with a predefined default value of 10.

This default also works when adding WMS layers from the browser and it can be overridden for each layer when added from the datasource manager.

The default user experience has not changed when adding layers from the data source manager, so the default of 10 still applies unless it is explicitly set from the connection settings.

This feature was funded by QGIS user group Germany (QGIS Anwendergruppe Deutschland e.V.)

This feature was developed by Alessandro Pasotti

Feature: Add crs information in WMS GetFeatureInfo output when it differs from WGS84 ¶

GeoJSON explicitly requires the use of OGC:CRS84, but when a GetFeatureInfo request that explicitly requests a CRS that is not WGS84 is sent to a QGIS Server WMS, the output will now include the CRS definition in a manner compatible with the older GeoJSON specification format that included support for multiple Coordinate Reference Systems.

This feature was funded by Eurométropole de Strasbourg

This feature was developed by Julien Cabieces

Programmability ¶

Feature: Add replace/ replace all functionality to QgsCodeEditorWidget ¶

The new replace functionality allows replacing matching text. If the regex find option is enabled, then captured groups from the regular expression pattern are available for use in the replacement string using the numeric identifier of the group (e.g. via \1).

In addition, the processing script editor has been ported to leverage the QgsCodeEditorWidget class and functionalities.

This feature was developed by Nyall Dawson

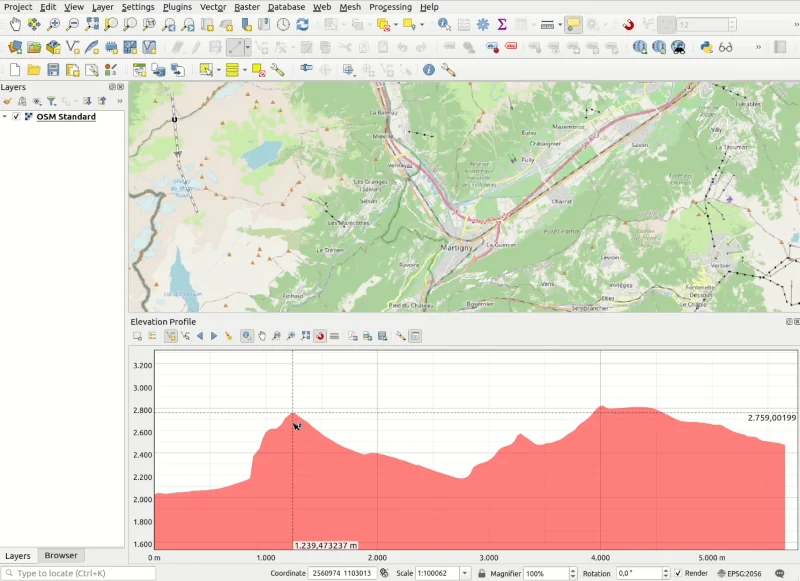

Feature: Register custom elevation profile sources ¶

We’ve added a new QgsProfileSourceRegistry class to allow both core and plugin developers to register profile sources other than map layers (e.g., based on profile web services).

These custom profile sources can generate elevation profiles that are displayed in the main Elevation Profile dock widget and as layout items.

To do so, plugins should subclass QgsAbstractPluginSource and pass it to the registry via registerProfileSource(). Likewise, plugins should unregister (most likely on their unload() method) their registered sources via unregisterProfileSource().

Like other QGIS registries, the profile source registry is available from the QgsApplication object: QgsApplication.profileSourceRegistry().

This feature was funded by the QGIS user group Switzerland

This feature was developed by Germán Carrillo

Notable Fixes ¶

Feature: Bug fixes by Even Rouault (Spatialys) ¶

Bug Title URL issues.qgis.org (if reported) URL Commit (Github) 3.34 backport commit (GitHub)

QGIS cannot load feature classes from a .gdb with a 64bit ObjectID #57471 Probably no longer a bug with GDAL 3.9
QGIS crashes while Export Data from a WFS-Service as DXF-File #57139 Cannot reproduce
WFS connection problems after QGIS Update from LTR 3.28.2 to LTR 3.34.4 #56931 Not a QGIS bug
[GML] asGml3() creates invalid GML for CurvePolygon #57355 PR #57476 PR #57485 GDAL processing provider: “FutureWarning: Neither ogr.UseExceptions() nor ogr.DontUseExceptions() has been explicitly called” warning #57344 PR #57477 Not appropriate QGIS can’t create conformant geopackage files with UTC “Z” timestamps #57262 PR #57483 PR #57548 QGIS cannot load feature classes from a .gdb with a 64bit ObjectID #57471 GDAL PR 9980 N/A [OAPIF] Server defined fields are not fetched when creating a new feature #57486 PR #57547 PR #57549 QGIS3.28.15:Polygon Features from ArcGIS GDB Turn into TABLE after Editing in QGIS #57536 GDAL PR 10008 N/A

This feature was funded by QGIS.ORG (through donations and sustaining memberships)

This feature was developed by Even Rouault (Spatialys)

Feature: Bug fixes by Alessandro Pasotti (itOpen / qcooperative) ¶

Bug Title URL issues.qgis.org (if reported) URL Commit (Github) 3.34 backport commit (GitHub)

QGIS Server GetFeatureInfo issue on WMTS layer #57441 PR #57491 queued Cannot connect to SQL Server on QGis 3.34.3 #56136 Cannot reproduce
Balloon annotations fails to adopt text formatting #57423 Cannot reproduce
Generate XYZ tiles’ does not render labels from ArcGIS Vector Tile Service layers #57443 PR #57517 queued Empty space after host name in SQL server, cause inconsistent error #57358 PR #57518 queued GDAL/OGR processing algorithms may silently output incorrect result if an input is a vector “memory” layer with a “fid” column #57343 PR #57522 queued attribute table row sorting doesn’t work #57338 PR #57624 queued Unable to edit elements in the print layout after locking an element #57331 PR #57543 queued QGIS 3.34 LTR not loading REST services with referers #57288 Cannot reproduce (on master)
New Postgis/Postgres connection NOT saving username/password when requested #57284 PR #57544
setting labeling font size to less than 0.3 freezes qgis with meters units #57336 PR #57560
Server: OAPIF/WFS3 service collection id missmatch #57556 PR #57561 queued [Layout manager] The wordwrap expression function fails if the legend item is set to hidden #57589 Cannot reproduce (on master) - closed by OP
[ux][layouts] Fix legend item style mutex unreported PR #57605 N/A Expression output won’t show until you open the attribute table (PostGIS layers) #57578 Cannot reproduce (on master and 3.36)
QGIS Server wrongly positions the map objects in the output when there’s more than one map #57631 Not a bug
Current selected feature still marked as “dirty” after save in attribute table’s form view #57644 PR #57674
JSON-String not read from GPKG #57673 PR #57707 N/A value maps ignore field length #57634 PR #57690
Identify Results for raster data value does not use correct decimal separator #57765 PR #57769 queued Value relation dropdown issue -Dropdown list selection reverts to default value upon selecting subtype option #57808 Cannot reproduce (awaiting feedback)

This feature was funded by QGIS.ORG (through donations and sustaining memberships)

This feature was developed by Alessandro Pasotti (itOpen / qcooperative)

Feature: Bug fixes by David Signer (OPENGIS) ¶

Bug Title URL issues.qgis.org (if reported) URL Commit (Github) 3.34 backport commit (GitHub)

Wrongly displayed action widget #33464,#57398,#56966 PR #57475 Not appropriate Custom properties variableNames and variableValues are cleared when more than one layer custom variable exist #57334 PR #57490 Not appropriate Default values depending on other fields are not correctly applied when field not part of form made by Drag and Drop Designer #57411 PR #57527 Not appropriate

This feature was funded by QGIS.ORG (through donations and sustaining memberships)

This feature was developed by David Signer (OPENGIS)

Feature: Bug fixes by Sandro Santilli (strk) ¶

Bug Title URL issues.qgis.org (if reported) URL Commit (Github) 3.34 backport commit (GitHub)

Source-tree documentation improvements unreported PR #57594
QGIS DB manager lowercase conversion is broken #52898 PR #57645
“money” type (postgresql) interpreted as string #25529 PR #57513
Fix podman run of container-based testing #57724 PR #57688
QGIS 3.34 is not able to figure out PostgreSQL relations when there are build using compound keys #56420 PR #57653 PR #57817 Fix PostgreSQL compound key discovery #56420 PR #57653 PR #57817 Extent of data fetched from GEOGRAPHY PostGIS column can not be changed #30294 PR #57514
test_core_project test fail if TMPDIR is set to anything but /tmp #57610 PR #57606
Tests create directories under ~/.local/share #50587
Directory /tmp full of QGIS temporary files after ctest run #48884
test_provider_postgresprovider TestPyQgsPostgresProvider.testExtent doesn’t test extent #57818 PR #57829

This feature was funded by QGIS.ORG (through donations and sustaining memberships)

This feature was developed by Sandro Santilli (strk)

Feature: Bug fixes by Julien Cabieces (Oslandia) ¶

Bug Title URL issues.qgis.org (if reported) URL Commit (Github) 3.34 backport commit (GitHub)

Avoid crash on summary when error list is empty unreported PR #57658 PR #57661 Masking symbol of current layer not listed in style panel #57248 PR #57679 PR #57783 Marker Line masking not working for layout prints or PDF exports #57564 PR #57694
Qgis crashes while digitising lines #57617 Cannot reproduce
Crash when running Topology Checker to validate corrective edits. #53425 PR #57695 PR #57712 Topology Checker crashes #57627 PR #57695 PR #57712 Debian sid Qt6 compile fails on sip build, python bindings #57760 upstream issue, wait for PyQt/sip mailing list answer

This feature was funded by QGIS.ORG (through donations and sustaining memberships)

This feature was developed by Julien Cabieces (Oslandia)

Feature: Bug fixes by Jacky Volpes (Oslandia) ¶

Bug Title URL issues.qgis.org (if reported) URL Commit (Github) 3.34 backport commit (GitHub)

copy/paste feature tool sets integer/decimal fields of destination feature to 0 if the source feature fields are NULL #57710 PR #57851 PR #57855 Postgres layer with multi geometry collumns fails to export #57757 Not a bug
Georeferecing tool : default name for export with an accent in french (_modifié) #55389 Transifex

This feature was funded by QGIS.ORG (through donations and sustaining memberships)

This feature was developed by Jacky Volpes (Oslandia)

Feature: Bug fixes by Jean Felder (Oslandia) ¶

Bug Title URL issues.qgis.org (if reported) URL Commit (Github) 3.34 backport commit (GitHub)

qgsabstractmaterialsettings: Handle selection in addParametersToEffect unreported PR #57803 not backported qgs3daxis: Fix cube face picking unreported PR #57848

This feature was funded by QGIS.ORG (through donations and sustaining memberships)

This feature was developed by Jean Felder (Oslandia)

Feature: Bug fixes by Nyall Dawson (North Road) ¶

Bug Title URL issues.qgis.org (if reported) URL Commit (Github) 3.34 backport commit (GitHub)

Fix bugs relating to selective masking vector exports #50734 PR #57843 Too intrusive Fix bugs relating to selective masking vector exports #54788 PR #57703 Too intrusive Fix bugs relating to selective masking vector exports PR #57623 Too intrusive
Fix bugs relating to selective masking vector exports PR #57498 Too intrusive
Pressing escape should clear current identify results #47984 PR #57774 N/A Fix some grass vectors incorrectly show as datasets unreported PR #57780 PR #57786 Don’t try to load extent strings as layers #57758 PR #57772 PR #57787 Limit fixed interval classification to generate at most 999 classes PR #50290 PR #57722 Not appropriate Don’t try to connect widget to null vector tile layers unreported PR #57721 N/A Don’t show invalid “Style not found in database” warning when adding vector tile layers unreported PR #57714 Not appropriate Replace processing default extension setting with string based setting #57676 PR #57702 Not appropriate Fix incorrect attempts to load outputs from models to projects #57698 PR #57701 PR #57715 Fix add feature dialog does not restore position when shown modally unreported PR #57686 PR #57700 Fix python script editor “open in external editor” action unreported PR #57682 Not appropriate Fix broken prefetch capabilities for raster layers unreported PR #57663 PR #57667 Fix missing field type information in eg the horizontal header tooltips in attribute table unreported PR #57621 Not appropriate Don’t try to paint to indexed image unreported PR #57601
Clamp values for set_color_part function to avoid qt warnings when out of range values are specified unreported PR #57600
Add some tests for rendering text with RTL markers PR #57586
Fix rotation based orientation when html labeling enabled unreported PR #57582 Too intrusive Fix data defined font size is ignored when HTML labeling is active unreported PR #57582 Too intrusive Don’t set @value to line height when evaluating multi line alignment unreported PR #57582 Too intrusive Don’t try to load CRS strings as map layers #57494 PR #57508 PR #57541 Don’t try to load CRS strings as map layers #57494 PR #57576 PR #57579 Fix line extension tool when layer crs != map crs #49267 PR #57575
Fix incorrect buffers drawn for html label item unreported PR #57551 PR #57571 Fix label mask sizes get reset to 0 unreported PR #57555 PR #57569 Fix tab stops in legend text #56981 PR #57554 N/A Fix colors for new diagram categories are not randomly picked #56862 PR #57532 PR #57539 Make brush and stroke style combo box icons visible on dark themes unreported PR #57506 PR #57510

This feature was funded by QGIS.ORG (through donations and sustaining memberships)

This feature was developed by Nyall Dawson (North Road)
